Counter Flow Cooler Specifications

BHAJAN’s Counter-Flow Cooler solutions ensure the correct temperature of pellets prior to storage.

The Counter Flow Cooler is suitable for optimum cooling of the pellets coming out from the Pellet mill. It prepares the pellets optimally for storage and is one of the cleanest solutions due its discharge system.

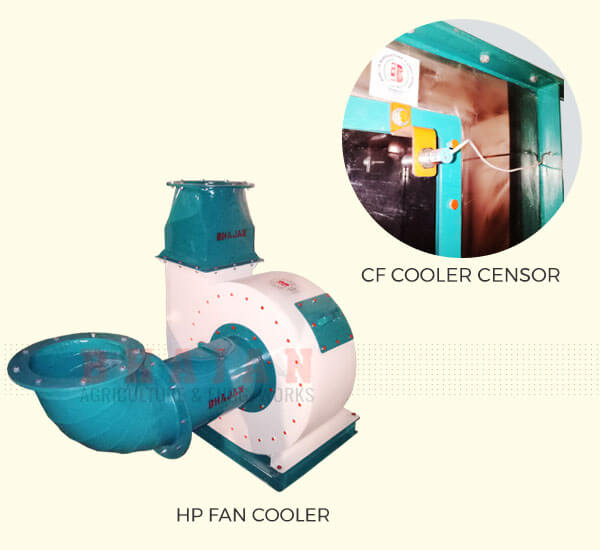

After the pelleting process, hot pellets along with moisture & heat enters the Counter Flow cooler. It inhales the atmospheric air inside its body and exhales the hot air along with the dust particles. The circulation of air is mantained by the HP Fan. The tiny particles and dust collected with the help of cyclone attached to the exhalation of Cooler. It keeps the binding strength of pellet strong & improves its quality.


  • Cooling of heat treated materials to ensure proper storage.
  • Counter-flow cooling provide efficient energy transfer.
  • Clean operating conditions.
  • Low maintenance and operational costs.
SR. No MODEL Capacity(MT/hr.) P-requiredH.P
1. BAEW CF-C 25 2.5-3 Mton/hr. 20 H.P.
2. BAEW CF-C 50 5-6 Mton/hr. 21 H.P.
3. BAEW CF-C 100 10-12 Mton/hr. 29 H.P.
4. BAEW CF-C 150 15-16 Mton/hr. 41 H.P.

Why Choose Us?

At Bhajan Agriculture & Engg. Works. , quality is the word, which contains utmost value. Considering the end-application and usage of our systems, Bhajan Agriculture & Engg. Works takes special care at each and every stage of the production. All these systems are manufactured using only certified components. In addition, all these components are checked before taking up the production.
