Crumbler Specifications

BHAJAN manufactures and offers a complete range of high-capacity crumblers for all kinds of animal feed pellets.

After the cooling process, pellets are being crumbled, they are crushed into consistent crumbs, resulting in optimum digestibility for the animal.

Function & Application

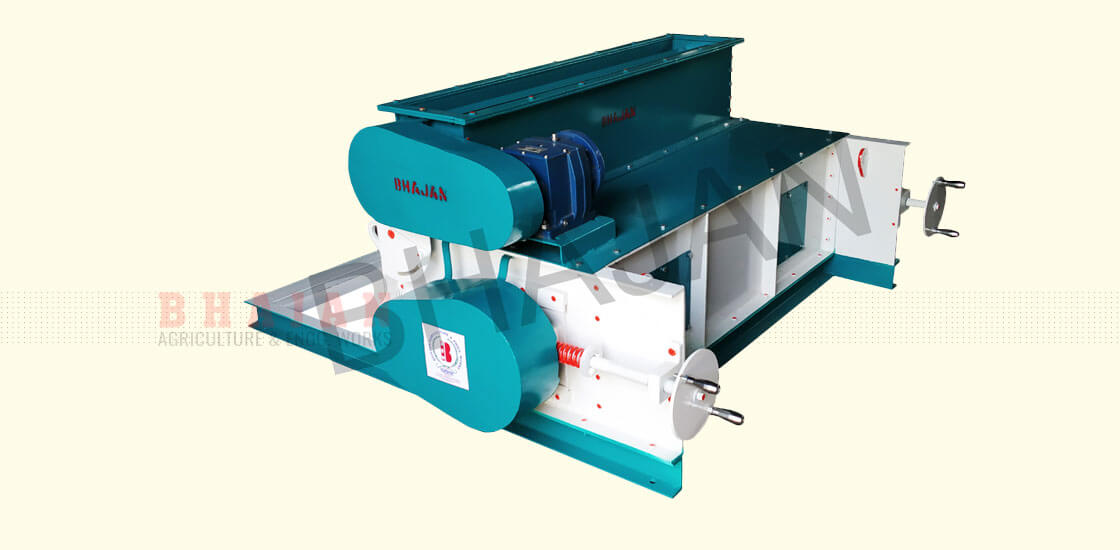

A crumbler is a roller mill with rolls specially designed for breaking up pellets into smaller particles. Usually the crumbler consists of two corrugated rolls situated below the cooler/drier exit. The pellets can then be diverted into the crumbler, if crumbles or granules are desired, or they can by-pass it.

MODEL No Roller Size Capacity P-Required
BAEW CR-900 900x160mm 2-3 Ton/hr. 12 H.P.
BAEW CR-1200 1200x200mm 5-6 Ton/hr. 14.5 H.P.
BAEW CR-1465 1465x200mm 10-12 Ton/hr. 18 H.P.
BAEW CR-1600 1600x250mm 18-20 Ton/hr. 35 H.P.

Why Choose Us?

At Bhajan Agriculture & Engg. Works. , quality is the word, which contains utmost value. Considering the end-application and usage of our systems, Bhajan Agriculture & Engg. Works takes special care at each and every stage of the production. All these systems are manufactured using only certified components. In addition, all these components are checked before taking up the production.
