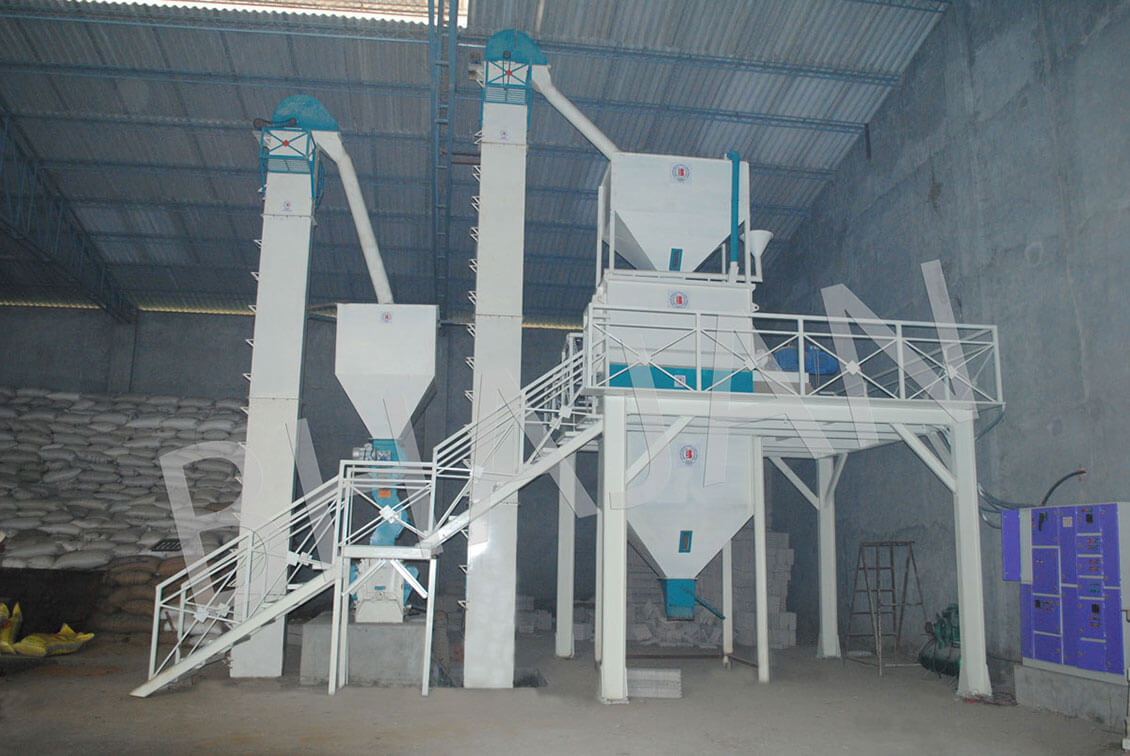

Mash feed plant with 10- 12 MT/hr Capacity

Plant Features

  • Plant output capacity 10-12 MT/hr (with 4mm sieve in hammer mill).
  • Equipped with Intake weighing system with Strong Magnetic Grill (Earth Rod Magnets).
  • Double screen Hammer Mill working on 50-60 HP with VFD controlled Rotary Feeder.
  • Double Ribbon Mixer is provided which is working on 20 HP with outstanding mixing efficiency in 4-5 minutes.
  • Equipped with bucket elevators with heavy gauge buckets, MRF make nylon-rubber belting for long life without elongation, with belt drive or directly coupled gear motors.
  • Batch bin above mixer and hammer mill with sight glass for level observation.
  • Minimum space and height required.
  • Batch bin and feed mixer having access doors for inspection and cleaning.
  • Dust free design without using any aspiration system.
  • Dust free single door medicine hopper is provided over the Batch Mixer.
  • Feed mixer is installed at structure having a batch hopper above it & a below discharge hopper. As the batch is mixed completely, material is discharged in below hopper for bagging & another batch which is stored in above hopper, is discharged to the mixer. It saves the Time & Energy.
  • Semi Automatic oil/Molasses spray system for appropriate dosing each batch.
  • Equipped with small hopper for addition of Premix & micro ingredients directly into mixer
  • Bagging can be done automatically or manually as per required.

Why Choose Us?

At Bhajan Agriculture & Engg. Works. , quality is the word, which contains utmost value. Considering the end-application and usage of our systems, Bhajan Agriculture & Engg. Works takes special care at each and every stage of the production. All these systems are manufactured using only certified components. In addition, all these components are checked before taking up the production.
